Structural Stud Interior & Exterior Framing

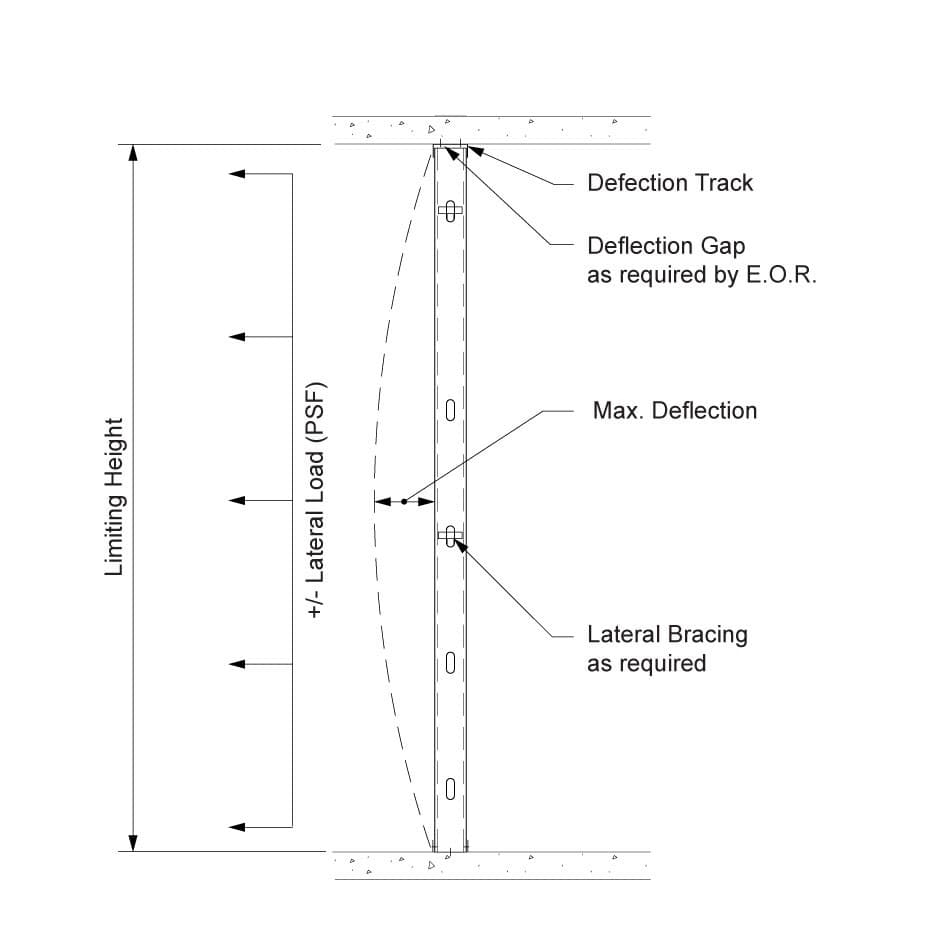

Interior Walls w/ Structural Framing
308 Wall Systems Shown
S162 (1-5/8" Flange Structural Stud) Unpunched 162S162-33-P
Limiting Height: 13' 3" Spacing L/120 L/240 L/360 12" 13' 3" 10' 6" 9' 2" 16" 12' 0" 9' 7" 8' 4" 24" 10' 6" 8' 4" 7' 3"
S162 (1-5/8" Flange Structural Stud) Unpunched 162S162-43-P
Limiting Height: 14' 4" Spacing L/120 L/240 L/360 12" 14' 4" 11' 5" 9' 11" 16" 13' 1" 10' 4" 9' 1" 24" 11' 5" 9' 1" 7' 11"
S162 (1-5/8" Flange Structural Stud) Unpunched 162S162-54-P
Limiting Height: 15' 4" Spacing L/120 L/240 L/360 12" 15' 4" 12' 2" 10' 8" 16" 13' 11" 11' 1" 9' 8" 24" 12' 2" 9' 8" 8' 5"
S137 (1-3/8" Flange Structural Stud) Unpunched 250S137-33-P
Limiting Height: 17' 6" Spacing L/120 L/240 L/360 12" 17' 6" 13' 10" 12' 1" 16" 15' 10" 12' 7" 11' 0" 24" 13' 10" 11' 0" 9' 7"
S137 (1-3/8" Flange Structural Stud) Unpunched 250S137-43-P
Limiting Height: 19' 0" Spacing L/120 L/240 L/360 12" 19' 0" 15' 1" 13' 2" 16" 17' 3" 13' 8" 11' 11" 24" 15' 1" 11' 11" 10' 5"
S137 (1-3/8" Flange Structural Stud) Unpunched 250S137-54-P
Limiting Height: 20' 3" Spacing L/120 L/240 L/360 12" 20' 3" 16' 1" 14' 1" 16" 18' 5" 14' 8" 12' 9" 24" 16' 1" 12' 9" 11' 2"
S137 (1-3/8" Flange Structural Stud) Unpunched 250S137-68-P
Limiting Height: 21' 8" Spacing L/120 L/240 L/360 12" 21' 8" 17' 2" 15' 0" 16" 19' 8" 15' 7" 13' 8" 24" 17' 2" 13' 8" 11' 11"
S137 (1-3/8" Flange Structural Stud) Unpunched 250S137-97-P
Limiting Height: 23' 8" Spacing L/120 L/240 L/360 12" 23' 8" 18' 10" 16' 5" 16" 21' 6" 17' 1" 14' 11" 24" 18' 10" 14' 11" 13' 0"
S162 (1-5/8" Flange Structural Stud) Unpunched 250S162-33-P
Limiting Height: 18' 4" Spacing L/120 L/240 L/360 12" 18' 4" 14' 7" 12' 9" 16" 16' 8" 13' 3" 11' 7" 24" 14' 7" 11' 7" 10' 1"
S162 (1-5/8" Flange Structural Stud) Unpunched 250S162-43-P
Limiting Height: 19' 11" Spacing L/120 L/240 L/360 12" 19' 11" 15' 10" 13' 10" 16" 18' 1" 14' 4" 12' 7" 24" 15' 10" 12' 7" 11' 0"
S162 (1-5/8" Flange Structural Stud) Unpunched 250S162-54-P
Limiting Height: 21' 4" Spacing L/120 L/240 L/360 12" 21' 4" 16' 11" 14' 9" 16" 19' 4" 15' 5" 13' 5" 24" 16' 11" 13' 5" 11' 9"
S162 (1-5/8" Flange Structural Stud) Unpunched 250S162-68-P
Limiting Height: 22' 9" Spacing L/120 L/240 L/360 12" 22' 9" 18' 1" 15' 9" 16" 20' 8" 16' 5" 14' 4" 24" 18' 1" 14' 4" 12' 6"
S162 (1-5/8" Flange Structural Stud) Unpunched 250S162-97-P
Limiting Height: 25' 0" Spacing L/120 L/240 L/360 12" 25' 0" 19' 10" 17' 4" 16" 22' 9" 18' 0" 15' 9" 24" 19' 10" 15' 9" 13' 9"
S200 (2" Flange Structural Stud) Unpunched 250S200-33-P
Limiting Height: 19' 4" Spacing L/120 L/240 L/360 12" 19' 4" 15' 4" 13' 5" 16" 17' 7" 13' 11" 12' 2" 24" 15' 4" 12' 2" 10' 8"
S200 (2" Flange Structural Stud) Unpunched 250S200-43-P
Limiting Height: 21' 1" Spacing L/120 L/240 L/360 12" 21' 1" 16' 9" 14' 8" 16" 19' 2" 15' 3" 13' 4" 24" 16' 9" 13' 4" 11' 7"
S200 (2" Flange Structural Stud) Unpunched 250S200-54-P
Limiting Height: 22' 7" Spacing L/120 L/240 L/360 12" 22' 7" 17' 11" 15' 8" 16" 20' 6" 16' 4" 14' 3" 24" 17' 11" 14' 3" 12' 5"
S200 (2" Flange Structural Stud) Unpunched 250S200-68-P
Limiting Height: 24' 2" Spacing L/120 L/240 L/360 12" 24' 2" 19' 2" 16' 9" 16" 21' 11" 17' 5" 15' 3" 24" 19' 2" 15' 3" 13' 4"
S200 (2" Flange Structural Stud) Unpunched 250S200-97-P
Limiting Height: 26' 7" Spacing L/120 L/240 L/360 12" 26' 7" 21' 1" 18' 5" 16" 24' 2" 19' 2" 16' 9" 24" 21' 1" 16' 9" 14' 8"
S250 (2-1/2" Flange Structural Stud) Unpunched 250S250-33-P
Limiting Height: 20' 3" Spacing L/120 L/240 L/360 12" 20' 3" 16' 1" 14' 0" 16" 18' 4" 14' 7" 12' 9" 24" 16' 1" 12' 9" 11' 2"
S250 (2-1/2" Flange Structural Stud) Unpunched 250S250-43-P
Limiting Height: 22' 4" Spacing L/120 L/240 L/360 12" 22' 4" 17' 9" 15' 6" 16" 20' 4" 16' 1" 14' 1" 24" 17' 9" 14' 1" 12' 4"
S250 (2-1/2" Flange Structural Stud) Unpunched 250S250-54-P
Limiting Height: 23' 11" Spacing L/120 L/240 L/360 12" 23' 11" 19' 0" 16' 7" 16" 21' 9" 17' 3" 15' 1" 24" 19' 0" 15' 1" 13' 2"
S250 (2-1/2" Flange Structural Stud) Unpunched 250S250-68-P
Limiting Height: 25' 8" Spacing L/120 L/240 L/360 12" 25' 8" 20' 4" 17' 9" 16" 23' 4" 18' 6" 16' 2" 24" 20' 4" 16' 2" 14' 1"
S250 (2-1/2" Flange Structural Stud) Unpunched 250S250-97-P
Limiting Height: 28' 4" Spacing L/120 L/240 L/360 12" 28' 4" 22' 6" 19' 8" 16" 25' 9" 20' 5" 17' 10" 24" 22' 6" 17' 10" 15' 7"
S162 (1-5/8" Flange Structural Stud) Unpunched 350S162-33-P
Limiting Height: 23' 9" Spacing L/120 L/240 L/360 12" 23' 9" 18' 10" 16' 5" 16" 21' 7" 17' 1" 14' 11" 24" 18' 3" 14' 11" 13' 1"
S162 (1-5/8" Flange Structural Stud) Unpunched 350S162-43-P
Limiting Height: 25' 10" Spacing L/120 L/240 L/360 12" 25' 10" 20' 6" 17' 11" 16" 23' 5" 18' 7" 16' 3" 24" 20' 6" 16' 3" 14' 2"
S162 (1-5/8" Flange Structural Stud) Unpunched 350S162-54-P
Limiting Height: 27' 8" Spacing L/120 L/240 L/360 12" 27' 8" 21' 11" 19' 2" 16" 25' 1" 19' 11" 17' 5" 24" 21' 11" 17' 5" 15' 2"
S162 (1-5/8" Flange Structural Stud) Unpunched 350S162-68-P
Limiting Height: 29' 7" Spacing L/120 L/240 L/360 12" 29' 7" 23' 6" 20' 6" 16" 26' 10" 21' 4" 18' 7" 24" 23' 6" 18' 7" 16' 3"
S162 (1-5/8" Flange Structural Stud) Unpunched 350S162-97-P
Limiting Height: 32' 7" Spacing L/120 L/240 L/360 12" 32' 7" 25' 10" 22' 7" 16" 29' 7" 23' 6" 20' 6" 24" 25' 10" 20' 6" 17' 11"
S200 (2" Flange Structural Stud) Unpunched 350S200-33-P
Limiting Height: 24' 11" Spacing L/120 L/240 L/360 12" 24' 11" 19' 10" 17' 4" 16" 22' 8" 18' 0" 15' 9" 24" 19' 4" 15' 9" 13' 9"
S200 (2" Flange Structural Stud) Unpunched 350S200-43-P
Limiting Height: 27' 3" Spacing L/120 L/240 L/360 12" 27' 3" 21' 8" 18' 11" 16" 24' 9" 19' 8" 17' 2" 24" 21' 8" 17' 2" 15' 0"
S200 (2" Flange Structural Stud) Unpunched 350S200-54-P
Limiting Height: 29' 3" Spacing L/120 L/240 L/360 12" 29' 3" 23' 2" 20' 3" 16" 26' 6" 21' 1" 18' 5" 24" 23' 2" 18' 5" 16' 1"
S200 (2" Flange Structural Stud) Unpunched 350S200-68-P
Limiting Height: 31' 3" Spacing L/120 L/240 L/360 12" 31' 3" 24' 10" 21' 8" 16" 28' 5" 22' 7" 19' 8" 24" 24' 10" 19' 8" 17' 3"
S200 (2" Flange Structural Stud) Unpunched 350S200-97-P
Limiting Height: 34' 7" Spacing L/120 L/240 L/360 12" 34' 7" 27' 5" 24' 0" 16" 31' 5" 24' 11" 21' 9" 24" 27' 5" 21' 9" 19' 0"
S250 (2-1/2" Flange Structural Stud) Unpunched 350S250-33-P
Limiting Height: 26' 0" Spacing L/120 L/240 L/360 12" 26' 0" 20' 8" 18' 0" 16" 23' 7" 18' 9" 16' 4" 24" 20' 0" 16' 4" 14' 4"
S250 (2-1/2" Flange Structural Stud) Unpunched 350S250-43-P
Limiting Height: 28' 9" Spacing L/120 L/240 L/360 12" 28' 9" 22' 10" 19' 11" 16" 26' 1" 20' 9" 18' 1" 24" 22' 10" 18' 1" 15' 10"
S250 (2-1/2" Flange Structural Stud) Unpunched 350S250-54-P
Limiting Height: 30' 9" Spacing L/120 L/240 L/360 12" 30' 9" 24' 5" 21' 4" 16" 27' 11" 22' 2" 19' 4" 24" 24' 5" 19' 4" 16' 11"
S250 (2-1/2" Flange Structural Stud) Unpunched 350S250-68-P
Limiting Height: 33' 1" Spacing L/120 L/240 L/360 12" 33' 1" 26' 3" 22' 11" 16" 30' 0" 23' 10" 20' 10" 24" 26' 3" 20' 10" 18' 2"
S250 (2-1/2" Flange Structural Stud) Unpunched 350S250-97-P
Limiting Height: 36' 7" Spacing L/120 L/240 L/360 12" 36' 7" 29' 1" 25' 5" 16" 33' 3" 26' 5" 23' 1" 24" 29' 1" 23' 1" 20' 2"
S137 (1-3/8" Flange Structural Stud) Unpunched 362S137-33-P
Limiting Height: 23' 3" Spacing L/120 L/240 L/360 12" 23' 3" 18' 5" 16' 1" 16" 21' 1" 16' 9" 14' 8" 24" 17' 3" 14' 8" 12' 10"
S137 (1-3/8" Flange Structural Stud) Unpunched 362S137-43-P
Limiting Height: 25' 3" Spacing L/120 L/240 L/360 12" 25' 3" 20' 1" 17' 6" 16" 23' 0" 18' 3" 15' 11" 24" 20' 1" 15' 11" 13' 11"
S137 (1-3/8" Flange Structural Stud) Unpunched 362S137-54-P
Limiting Height: 27' 1" Spacing L/120 L/240 L/360 12" 27' 1" 21' 6" 18' 9" 16" 24' 7" 19' 6" 17' 1" 24" 21' 6" 17' 1" 14' 11"
S137 (1-3/8" Flange Structural Stud) Unpunched 362S137-68-P
Limiting Height: 28' 11" Spacing L/120 L/240 L/360 12" 28' 11" 22' 11" 20' 1" 16" 26' 3" 20' 10" 18' 3" 24" 22' 11" 18' 3" 15' 11"
S137 (1-3/8" Flange Structural Stud) Unpunched 362S137-97-P
Limiting Height: 31' 10" Spacing L/120 L/240 L/360 12" 31' 10" 25' 3" 22' 1" 16" 28' 11" 22' 11" 20' 1" 24" 25' 3" 20' 1" 17' 6"
S137 (1-3/8" Flange Structural Stud) Unpunched 362S137-118-P
Limiting Height: 33' 5" Spacing L/120 L/240 L/360 12" 33' 5" 26' 6" 23' 2" 16" 30' 4" 24' 1" 21' 1" 24" 26' 6" 21' 1" 18' 5"
S162 (1-5/8" Flange Structural Stud) Unpunched 362S162-33-P
Limiting Height: 24' 4" Spacing L/120 L/240 L/360 12" 24' 4" 19' 4" 16' 11" 16" 22' 2" 17' 7" 15' 4" 24" 18' 8" 15' 4" 13' 5"
S162 (1-5/8" Flange Structural Stud) Unpunched 362S162-43-P
Limiting Height: 26' 6" Spacing L/120 L/240 L/360 12" 26' 6" 21' 0" 18' 5" 16" 24' 1" 19' 1" 16' 8" 24" 21' 0" 16' 8" 14' 7"
S162 (1-5/8" Flange Structural Stud) Unpunched 362S162-54-P
Limiting Height: 28' 5" Spacing L/120 L/240 L/360 12" 28' 5" 22' 6" 19' 8" 16" 25' 10" 20' 6" 17' 11" 24" 22' 6" 17' 11" 15' 7"
S162 (1-5/8" Flange Structural Stud) Unpunched 362S162-68-P
Limiting Height: 30' 5" Spacing L/120 L/240 L/360 12" 30' 5" 24' 1" 21' 1" 16" 27' 7" 21' 11" 19' 2" 24" 24' 1" 19' 2" 16' 9"
S162 (1-5/8" Flange Structural Stud) Unpunched 362S162-97-P
Limiting Height: 33' 6" Spacing L/120 L/240 L/360 12" 33' 6" 26' 7" 23' 3" 16" 30' 5" 24' 2" 21' 1" 24" 26' 7" 21' 1" 18' 5"
S162 (1-5/8" Flange Structural Stud) Unpunched 362S162-118-P
Limiting Height: 35' 3" Spacing L/120 L/240 L/360 12" 35' 3" 28' 0" 24' 5" 16" 32' 1" 25' 5" 22' 3" 24" 28' 0" 22' 3" 19' 5"
S200 (2" Flange Structural Stud) Unpunched 362S200-33-P
Limiting Height: 25' 8" Spacing L/120 L/240 L/360 12" 25' 8" 20' 4" 17' 9" 16" 23' 3" 18' 6" 16' 2" 24" 19' 8" 16' 2" 14' 1"
S200 (2" Flange Structural Stud) Unpunched 362S200-43-P
Limiting Height: 28' 0" Spacing L/120 L/240 L/360 12" 28' 0" 22' 3" 19' 5" 16" 25' 5" 20' 2" 17' 8" 24" 22' 3" 17' 8" 15' 5"
S200 (2" Flange Structural Stud) Unpunched 362S200-54-P
Limiting Height: 30' 0" Spacing L/120 L/240 L/360 12" 30' 0" 23' 10" 20' 10" 16" 27' 3" 21' 8" 18' 11" 24" 23' 10" 18' 11" 16' 6"
S200 (2" Flange Structural Stud) Unpunched 362S200-68-P
Limiting Height: 32' 2" Spacing L/120 L/240 L/360 12" 32' 2" 25' 6" 22' 3" 16" 29' 2" 23' 2" 20' 3" 24" 25' 6" 20' 3" 17' 8"
S200 (2" Flange Structural Stud) Unpunched 362S200-97-P
Limiting Height: 35' 6" Spacing L/120 L/240 L/360 12" 35' 6" 28' 3" 24' 8" 16" 32' 3" 25' 8" 22' 5" 24" 28' 3" 22' 5" 19' 7"
S200 (2" Flange Structural Stud) Unpunched 362S200-118-P
Limiting Height: 37' 6" Spacing L/120 L/240 L/360 12" 37' 6" 29' 9" 26' 0" 16" 34' 1" 27' 0" 23' 7" 24" 29' 9" 23' 7" 20' 8"
S250 (2-1/2" Flange Structural Stud) Unpunched 362S250-33-P
Limiting Height: 26' 8" Spacing L/120 L/240 L/360 12" 26' 8" 21' 2" 18' 6" 16" 24' 3" 19' 3" 16' 10" 24" 20' 5" 16' 10" 14' 8"
S250 (2-1/2" Flange Structural Stud) Unpunched 362S250-43-P
Limiting Height: 29' 6" Spacing L/120 L/240 L/360 12" 29' 6" 23' 5" 20' 6" 16" 26' 10" 21' 3" 18' 7" 24" 23' 5" 18' 7" 16' 3"
S250 (2-1/2" Flange Structural Stud) Unpunched 362S250-54-P
Limiting Height: 31' 7" Spacing L/120 L/240 L/360 12" 31' 7" 25' 1" 21' 11" 16" 28' 8" 22' 9" 19' 11" 24" 25' 1" 19' 11" 17' 4"
S250 (2-1/2" Flange Structural Stud) Unpunched 362S250-68-P
Limiting Height: 33' 11" Spacing L/120 L/240 L/360 12" 33' 11" 26' 11" 23' 6" 16" 30' 10" 24' 6" 21' 5" 24" 26' 11" 21' 5" 18' 8"
S250 (2-1/2" Flange Structural Stud) Unpunched 362S250-97-P
Limiting Height: 37' 7" Spacing L/120 L/240 L/360 12" 37' 7" 29' 10" 26' 1" 16" 34' 2" 27' 1" 23' 8" 24" 29' 10" 23' 8" 20' 8"
S250 (2-1/2" Flange Structural Stud) Unpunched 362S250-118-P
Limiting Height: 39' 9" Spacing L/120 L/240 L/360 12" 39' 9" 31' 6" 27' 6" 16" 36' 1" 28' 8" 25' 0" 24" 31' 6" 25' 0" 21' 10"
S300 (3" Flange Structural Stud) Unpunched 362S300-33-P
Limiting Height: 27' 6" Spacing L/120 L/240 L/360 12" 27' 6" 21' 10" 19' 1" 16" 25' 0" 19' 10" 17' 4" 24" 20' 9" 17' 4" 15' 2"
S300 (3" Flange Structural Stud) Unpunched 362S300-43-P
Limiting Height: 30' 7" Spacing L/120 L/240 L/360 12" 30' 7" 24' 3" 21' 2" 16" 27' 9" 22' 0" 19' 3" 24" 24' 3" 19' 3" 16' 10"
S300 (3" Flange Structural Stud) Unpunched 362S300-54-P
Limiting Height: 32' 5" Spacing L/120 L/240 L/360 12" 32' 5" 25' 8" 22' 5" 16" 29' 5" 23' 4" 20' 5" 24" 25' 8" 20' 5" 17' 10"
S300 (3" Flange Structural Stud) Unpunched 362S300-68-P
Limiting Height: 35' 4" Spacing L/120 L/240 L/360 12" 35' 4" 28' 0" 24' 6" 16" 32' 1" 25' 6" 22' 3" 24" 28' 0" 22' 3" 19' 5"
S300 (3" Flange Structural Stud) Unpunched 362S300-97-P
Limiting Height: 39' 4" Spacing L/120 L/240 L/360 12" 39' 4" 31' 2" 27' 3" 16" 35' 9" 28' 4" 24' 9" 24" 31' 2" 24' 9" 21' 8"
S300 (3" Flange Structural Stud) Unpunched 362S300-118-P
Limiting Height: 41' 7" Spacing L/120 L/240 L/360 12" 41' 7" 33' 0" 28' 10" 16" 37' 10" 30' 0" 26' 3" 24" 33' 0" 26' 3" 22' 11"
S137 (1-3/8" Flange Structural Stud) Unpunched 400S137-33-P
Limiting Height: 25' 1" Spacing L/120 L/240 L/360 12" 25' 1" 19' 11" 17' 5" 16" 22' 5" 18' 1" 15' 10" 24" 18' 3" 15' 10" 13' 10"
S137 (1-3/8" Flange Structural Stud) Unpunched 400S137-43-P
Limiting Height: 27' 4" Spacing L/120 L/240 L/360 12" 27' 4" 21' 8" 18' 11" 16" 24' 10" 19' 8" 17' 2" 24" 21' 8" 17' 2" 15' 0"
S137 (1-3/8" Flange Structural Stud) Unpunched 400S137-54-P
Limiting Height: 29' 3" Spacing L/120 L/240 L/360 12" 29' 3" 23' 2" 20' 3" 16" 26' 7" 21' 1" 18' 5" 24" 23' 2" 18' 5" 16' 1"
S137 (1-3/8" Flange Structural Stud) Unpunched 400S137-68-P
Limiting Height: 31' 3" Spacing L/120 L/240 L/360 12" 31' 3" 24' 10" 21' 8" 16" 28' 5" 22' 7" 19' 8" 24" 24' 10" 19' 8" 17' 2"
S137 (1-3/8" Flange Structural Stud) Unpunched 400S137-97-P
Limiting Height: 34' 5" Spacing L/120 L/240 L/360 12" 34' 5" 27' 4" 23' 11" 16" 31' 3" 24' 10" 21' 8" 24" 27' 4" 21' 8" 18' 11"
S162 (1-5/8" Flange Structural Stud) Unpunched 400S162-33-P
Limiting Height: 26' 3" Spacing L/120 L/240 L/360 12" 26' 3" 20' 10" 18' 3" 16" 23' 11" 18' 11" 16' 7" 24" 19' 9" 16' 7" 14' 6"
S162 (1-5/8" Flange Structural Stud) Unpunched 400S162-43-P
Limiting Height: 28' 7" Spacing L/120 L/240 L/360 12" 28' 7" 22' 8" 19' 10" 16" 26' 0" 20' 7" 18' 0" 24" 22' 8" 18' 0" 15' 9"
S162 (1-5/8" Flange Structural Stud) Unpunched 400S162-54-P
Limiting Height: 30' 8" Spacing L/120 L/240 L/360 12" 30' 8" 24' 4" 21' 3" 16" 27' 10" 22' 1" 19' 4" 24" 24' 4" 19' 4" 16' 10"
S162 (1-5/8" Flange Structural Stud) Unpunched 400S162-68-P
Limiting Height: 32' 10" Spacing L/120 L/240 L/360 12" 32' 10" 26' 0" 22' 9" 16" 29' 10" 23' 8" 20' 8" 24" 26' 0" 20' 8" 18' 1"
S162 (1-5/8" Flange Structural Stud) Unpunched 400S162-97-P
Limiting Height: 36' 3" Spacing L/120 L/240 L/360 12" 36' 3" 28' 9" 25' 1" 16" 32' 11" 26' 1" 22' 10" 24" 28' 9" 22' 10" 19' 11"
S200 (2" Flange Structural Stud) Unpunched 400S200-33-P
Limiting Height: 27' 8" Spacing L/120 L/240 L/360 12" 27' 8" 21' 11" 19' 2" 16" 25' 1" 19' 11" 17' 5" 24" 20' 10" 17' 5" 15' 2"
S200 (2" Flange Structural Stud) Unpunched 400S200-43-P
Limiting Height: 30' 2" Spacing L/120 L/240 L/360 12" 30' 2" 23' 11" 20' 11" 16" 27' 5" 21' 9" 19' 0" 24" 23' 11" 19' 0" 16' 7"
S200 (2" Flange Structural Stud) Unpunched 400S200-54-P
Limiting Height: 32' 4" Spacing L/120 L/240 L/360 12" 32' 4" 25' 8" 22' 5" 16" 29' 5" 23' 4" 20' 5" 24" 25' 8" 20' 5" 17' 10"
S200 (2" Flange Structural Stud) Unpunched 400S200-68-P
Limiting Height: 34' 8" Spacing L/120 L/240 L/360 12" 34' 8" 27' 6" 24' 0" 16" 31' 6" 25' 0" 21' 10" 24" 27' 6" 21' 10" 19' 1"
S200 (2" Flange Structural Stud) Unpunched 400S200-97-P
Limiting Height: 38' 5" Spacing L/120 L/240 L/360 12" 38' 5" 30' 6" 26' 7" 16" 34' 10" 27' 8" 24' 2" 24" 30' 6" 24' 2" 21' 1"
S250 (2-1/2" Flange Structural Stud) Unpunched 400S250-33-P
Limiting Height: 28' 9" Spacing L/120 L/240 L/360 12" 28' 9" 22' 10" 19' 11" 16" 26' 1" 20' 9" 18' 1" 24" 21' 6" 18' 1" 15' 10"
S250 (2-1/2" Flange Structural Stud) Unpunched 400S250-43-P
Limiting Height: 31' 9" Spacing L/120 L/240 L/360 12" 31' 9" 25' 3" 22' 0" 16" 28' 10" 22' 11" 20' 0" 24" 25' 3" 20' 0" 17' 6"
S250 (2-1/2" Flange Structural Stud) Unpunched 400S250-54-P
Limiting Height: 34' 0" Spacing L/120 L/240 L/360 12" 34' 0" 27' 0" 23' 7" 16" 30' 10" 24' 6" 21' 5" 24" 27' 0" 21' 5" 18' 8"
S250 (2-1/2" Flange Structural Stud) Unpunched 400S250-68-P
Limiting Height: 36' 7" Spacing L/120 L/240 L/360 12" 36' 7" 29' 0" 25' 4" 16" 33' 3" 26' 4" 23' 0" 24" 29' 0" 23' 0" 20' 1"
S250 (2-1/2" Flange Structural Stud) Unpunched 400S250-97-P
Limiting Height: 40' 7" Spacing L/120 L/240 L/360 12" 40' 7" 32' 2" 28' 1" 16" 36' 10" 29' 3" 25' 7" 24" 32' 2" 25' 7" 22' 4"
S300 (3" Flange Structural Stud) Unpunched 400S300-33-P
Limiting Height: 29' 7" Spacing L/120 L/240 L/360 12" 29' 7" 23' 6" 20' 6" 16" 26' 11" 21' 4" 18' 8" 24" 22' 0" 18' 8" 16' 4"
S300 (3" Flange Structural Stud) Unpunched 400S300-43-P
Limiting Height: 32' 10" Spacing L/120 L/240 L/360 12" 32' 10" 26' 1" 22' 10" 16" 29' 10" 23' 8" 20' 8" 24" 26' 0" 20' 8" 18' 1"
S300 (3" Flange Structural Stud) Unpunched 400S300-54-P
Limiting Height: 34' 10" Spacing L/120 L/240 L/360 12" 34' 10" 27' 8" 24' 2" 16" 31' 8" 25' 1" 21' 11" 24" 27' 8" 21' 11" 19' 2"
S300 (3" Flange Structural Stud) Unpunched 400S300-68-P
Limiting Height: 38' 0" Spacing L/120 L/240 L/360 12" 38' 0" 30' 2" 26' 4" 16" 34' 6" 27' 5" 23' 11" 24" 30' 2" 23' 11" 20' 11"
S300 (3" Flange Structural Stud) Unpunched 400S300-97-P
Limiting Height: 42' 4" Spacing L/120 L/240 L/360 12" 42' 4" 33' 7" 29' 4" 16" 38' 6" 30' 6" 26' 8" 24" 33' 7" 26' 8" 23' 4"
S162 (1-5/8" Flange Structural Stud) Unpunched 550S162-33-P
Limiting Height: 33' 4" Spacing L/120 L/240 L/360 12" 33' 4" 26' 9" 23' 4" 16" 28' 10" 24' 4" 21' 3" 24" 23' 7" 21' 3" 18' 6"
S162 (1-5/8" Flange Structural Stud) Unpunched 550S162-43-P
Limiting Height: 36' 8" Spacing L/120 L/240 L/360 12" 36' 8" 29' 1" 25' 5" 16" 33' 4" 26' 5" 23' 1" 24" 28' 1" 23' 1" 20' 2"
S162 (1-5/8" Flange Structural Stud) Unpunched 550S162-54-P
Limiting Height: 39' 4" Spacing L/120 L/240 L/360 12" 39' 4" 31' 3" 27' 3" 16" 35' 9" 28' 5" 24' 9" 24" 31' 3" 24' 9" 21' 8"
S162 (1-5/8" Flange Structural Stud) Unpunched 550S162-68-P
Limiting Height: 42' 2" Spacing L/120 L/240 L/360 12" 42' 2" 33' 6" 29' 3" 16" 38' 4" 30' 5" 26' 7" 24" 33' 6" 26' 7" 23' 3"
S162 (1-5/8" Flange Structural Stud) Unpunched 550S162-97-P
Limiting Height: 46' 9" Spacing L/120 L/240 L/360 12" 46' 9" 37' 1" 32' 5" 16" 42' 5" 33' 8" 29' 5" 24" 37' 1" 29' 5" 25' 8"
S200 (2" Flange Structural Stud) Unpunched 550S200-33-P
Limiting Height: 35' 4" Spacing L/120 L/240 L/360 12" 35' 4" 28' 0" 24' 6" 16" 30' 10" 25' 5" 22' 3" 24" 25' 2" 22' 3" 19' 5"
S200 (2" Flange Structural Stud) Unpunched 550S200-43-P
Limiting Height: 38' 7" Spacing L/120 L/240 L/360 12" 38' 7" 30' 7" 26' 9" 16" 35' 1" 27' 10" 24' 4" 24" 30' 1" 24' 4" 21' 3"
S200 (2" Flange Structural Stud) Unpunched 550S200-54-P
Limiting Height: 41' 5" Spacing L/120 L/240 L/360 12" 41' 5" 32' 10" 28' 8" 16" 37' 7" 29' 10" 26' 1" 24" 32' 10" 26' 1" 22' 9"
S200 (2" Flange Structural Stud) Unpunched 550S200-68-P
Limiting Height: 44' 5" Spacing L/120 L/240 L/360 12" 44' 5" 35' 3" 30' 10" 16" 40' 4" 32' 0" 28' 0" 24" 35' 3" 28' 0" 24' 5"
S200 (2" Flange Structural Stud) Unpunched 550S200-97-P
Limiting Height: 49' 3" Spacing L/120 L/240 L/360 12" 49' 3" 39' 1" 34' 2" 16" 44' 9" 35' 6" 31' 1" 24" 39' 1" 31' 1" 27' 1"
S250 (2-1/2" Flange Structural Stud) Unpunched 550S250-33-P
Limiting Height: 36' 6" Spacing L/120 L/240 L/360 12" 36' 6" 29' 1" 25' 4" 16" 31' 7" 26' 5" 23' 1" 24" 25' 10" 23' 1" 20' 2"
S250 (2-1/2" Flange Structural Stud) Unpunched 550S250-43-P
Limiting Height: 40' 5" Spacing L/120 L/240 L/360 12" 40' 5" 32' 1" 28' 1" 16" 36' 9" 29' 2" 25' 6" 24" 30' 11" 25' 6" 22' 3"
S250 (2-1/2" Flange Structural Stud) Unpunched 550S250-54-P
Limiting Height: 43' 3" Spacing L/120 L/240 L/360 12" 43' 3" 34' 4" 30' 0" 16" 39' 3" 31' 2" 27' 3" 24" 34' 4" 27' 3" 23' 10"
S250 (2-1/2" Flange Structural Stud) Unpunched 550S250-68-P
Limiting Height: 46' 7" Spacing L/120 L/240 L/360 12" 46' 7" 37' 0" 32' 4" 16" 42' 4" 33' 7" 29' 4" 24" 37' 0" 29' 4" 25' 8"
S250 (2-1/2" Flange Structural Stud) Unpunched 550S250-97-P
Limiting Height: 51' 10" Spacing L/120 L/240 L/360 12" 51' 10" 41' 2" 35' 11" 16" 47' 1" 37' 4" 32' 8" 24" 41' 2" 32' 8" 28' 6"
S137 (1-3/8" Flange Structural Stud) Unpunched 600S137-33-P
Limiting Height: 32' 3" Spacing L/120 L/240 L/360 12" 32' 3" 27' 3" 23' 10" 16" 27' 11" 24' 9" 21' 8" 24" 22' 10" 21' 8" 18' 11"
S137 (1-3/8" Flange Structural Stud) Unpunched 600S137-43-P
Limiting Height: 37' 8" Spacing L/120 L/240 L/360 12" 37' 8" 29' 11" 26' 2" 16" 33' 7" 27' 2" 23' 9" 24" 27' 5" 23' 9" 20' 9"
S137 (1-3/8" Flange Structural Stud) Unpunched 600S137-54-P
Limiting Height: 40' 5" Spacing L/120 L/240 L/360 12" 40' 5" 32' 1" 28' 0" 16" 36' 9" 29' 2" 25' 6" 24" 32' 1" 25' 6" 22' 3"
S137 (1-3/8" Flange Structural Stud) Unpunched 600S137-68-P
Limiting Height: 43' 4" Spacing L/120 L/240 L/360 12" 43' 4" 34' 4" 30' 0" 16" 39' 4" 31' 3" 27' 3" 24" 34' 4" 27' 3" 23' 10"
S137 (1-3/8" Flange Structural Stud) Unpunched 600S137-97-P
Limiting Height: 47' 11" Spacing L/120 L/240 L/360 12" 47' 11" 38' 0" 33' 2" 16" 43' 6" 34' 6" 30' 2" 24" 38' 0" 30' 2" 26' 4"
S137 (1-3/8" Flange Structural Stud) Unpunched 600S137-118-P
Limiting Height: 50' 6" Spacing L/120 L/240 L/360 12" 50' 6" 40' 1" 35' 0" 16" 45' 11" 36' 5" 31' 10" 24" 40' 1" 31' 10" 27' 10"
S162 (1-5/8" Flange Structural Stud) Unpunched 600S162-33-P
Limiting Height: 34' 11" Spacing L/120 L/240 L/360 12" 34' 11" 28' 8" 25' 0" 16" 30' 3" 26' 0" 22' 9" 24" 24' 8" 22' 9" 19' 10"
S162 (1-5/8" Flange Structural Stud) Unpunched 600S162-43-P
Limiting Height: 39' 4" Spacing L/120 L/240 L/360 12" 39' 4" 31' 2" 27' 3" 16" 35' 9" 28' 4" 24' 9" 24" 29' 6" 24' 9" 21' 8"
S162 (1-5/8" Flange Structural Stud) Unpunched 600S162-54-P
Limiting Height: 42' 2" Spacing L/120 L/240 L/360 12" 42' 2" 33' 6" 29' 3" 16" 38' 4" 30' 5" 26' 7" 24" 33' 6" 26' 7" 23' 3"
S162 (1-5/8" Flange Structural Stud) Unpunched 600S162-68-P
Limiting Height: 45' 3" Spacing L/120 L/240 L/360 12" 45' 3" 35' 11" 31' 4" 16" 41' 1" 32' 7" 28' 6" 24" 35' 11" 28' 6" 24' 11"
S162 (1-5/8" Flange Structural Stud) Unpunched 600S162-97-P
Limiting Height: 50' 1" Spacing L/120 L/240 L/360 12" 50' 1" 39' 9" 34' 9" 16" 45' 6" 36' 2" 31' 7" 24" 39' 9" 31' 7" 27' 7"
S162 (1-5/8" Flange Structural Stud) Unpunched 600S162-118-P
Limiting Height: 52' 11" Spacing L/120 L/240 L/360 12" 52' 11" 42' 0" 36' 8" 16" 48' 1" 38' 2" 33' 4" 24" 42' 0" 33' 4" 29' 2"
S200 (2" Flange Structural Stud) Unpunched 600S200-33-P
Limiting Height: 37' 4" Spacing L/120 L/240 L/360 12" 37' 4" 30' 0" 26' 2" 16" 32' 4" 27' 3" 23' 10" 24" 26' 5" 23' 10" 20' 10"
S200 (2" Flange Structural Stud) Unpunched 600S200-43-P
Limiting Height: 41' 3" Spacing L/120 L/240 L/360 12" 41' 3" 32' 9" 28' 7" 16" 37' 6" 29' 9" 26' 0" 24" 31' 7" 26' 0" 22' 9"
S200 (2" Flange Structural Stud) Unpunched 600S200-54-P
Limiting Height: 44' 4" Spacing L/120 L/240 L/360 12" 44' 4" 35' 2" 30' 9" 16" 40' 3" 32' 0" 27' 11" 24" 35' 2" 27' 11" 24' 5"
S200 (2" Flange Structural Stud) Unpunched 600S200-68-P
Limiting Height: 47' 7" Spacing L/120 L/240 L/360 12" 47' 7" 37' 9" 33' 0" 16" 43' 2" 34' 4" 29' 11" 24" 37' 9" 29' 11" 26' 2"
S200 (2" Flange Structural Stud) Unpunched 600S200-97-P
Limiting Height: 52' 10" Spacing L/120 L/240 L/360 12" 52' 10" 41' 11" 36' 7" 16" 48' 0" 38' 1" 33' 3" 24" 41' 11" 33' 3" 29' 1"
S200 (2" Flange Structural Stud) Unpunched 600S200-118-P
Limiting Height: 55' 10" Spacing L/120 L/240 L/360 12" 55' 10" 44' 4" 38' 9" 16" 50' 9" 40' 3" 35' 2" 24" 44' 4" 35' 2" 30' 9"
S250 (2-1/2" Flange Structural Stud) Unpunched 600S250-33-P
Limiting Height: 38' 3" Spacing L/120 L/240 L/360 12" 38' 3" 31' 1" 27' 2" 16" 33' 1" 28' 3" 24' 8" 24" 27' 1" 24' 8" 21' 7"
S250 (2-1/2" Flange Structural Stud) Unpunched 600S250-43-P
Limiting Height: 43' 3" Spacing L/120 L/240 L/360 12" 43' 3" 34' 4" 30' 0" 16" 39' 3" 31' 2" 27' 3" 24" 32' 5" 27' 3" 23' 10"
S250 (2-1/2" Flange Structural Stud) Unpunched 600S250-54-P
Limiting Height: 46' 3" Spacing L/120 L/240 L/360 12" 46' 3" 36' 8" 32' 1" 16" 42' 0" 33' 4" 29' 1" 24" 36' 8" 29' 1" 25' 5"
S250 (2-1/2" Flange Structural Stud) Unpunched 600S250-68-P
Limiting Height: 49' 10" Spacing L/120 L/240 L/360 12" 49' 10" 39' 7" 34' 7" 16" 45' 3" 35' 11" 31' 5" 24" 39' 7" 31' 5" 27' 5"
S250 (2-1/2" Flange Structural Stud) Unpunched 600S250-97-P
Limiting Height: 55' 5" Spacing L/120 L/240 L/360 12" 55' 5" 44' 0" 38' 5" 16" 50' 4" 40' 0" 34' 11" 24" 44' 0" 34' 11" 30' 6"
S250 (2-1/2" Flange Structural Stud) Unpunched 600S250-118-P
Limiting Height: 58' 8" Spacing L/120 L/240 L/360 12" 58' 8" 46' 7" 40' 8" 16" 53' 4" 42' 4" 37' 0" 24" 46' 7" 37' 0" 32' 4"
S300 (3" Flange Structural Stud) Unpunched 600S300-33-P
Limiting Height: 38' 10" Spacing L/120 L/240 L/360 12" 38' 10" 32' 0" 27' 11" 16" 33' 8" 29' 1" 25' 5" 24" 27' 6" 25' 5" 22' 2"
S300 (3" Flange Structural Stud) Unpunched 600S300-43-P
Limiting Height: 44' 6" Spacing L/120 L/240 L/360 12" 44' 6" 35' 4" 30' 10" 16" 40' 5" 32' 1" 28' 1" 24" 33' 0" 28' 1" 24' 6"
S300 (3" Flange Structural Stud) Unpunched 600S300-54-P
Limiting Height: 47' 3" Spacing L/120 L/240 L/360 12" 47' 3" 37' 6" 32' 9" 16" 42' 11" 34' 1" 29' 9" 24" 37' 6" 29' 9" 26' 0"
S300 (3" Flange Structural Stud) Unpunched 600S300-68-P
Limiting Height: 51' 7" Spacing L/120 L/240 L/360 12" 51' 7" 40' 11" 35' 9" 16" 46' 10" 37' 2" 32' 6" 24" 40' 11" 32' 6" 28' 4"
S300 (3" Flange Structural Stud) Unpunched 600S300-97-P
Limiting Height: 57' 7" Spacing L/120 L/240 L/360 12" 57' 7" 45' 8" 39' 11" 16" 52' 4" 41' 6" 36' 3" 24" 45' 8" 36' 3" 31' 8"
S300 (3" Flange Structural Stud) Unpunched 600S300-118-P
Limiting Height: 61' 2" Spacing L/120 L/240 L/360 12" 61' 2" 48' 6" 42' 5" 16" 55' 7" 44' 1" 38' 6" 24" 48' 6" 38' 6" 33' 8"
S350 (3-1/2" Flange Structural Stud) Unpunched 600S350-33-P
Limiting Height: 41' 8" Spacing L/120 L/240 L/360 12" 41' 8" 33' 1" 28' 11" 16" 36' 5" 30' 1" 26' 3" 24" 29' 9" 26' 3" 22' 11"
S350 (3-1/2" Flange Structural Stud) Unpunched 600S350-43-P
Limiting Height: 46' 3" Spacing L/120 L/240 L/360 12" 46' 3" 36' 9" 32' 1" 16" 42' 0" 33' 4" 29' 2" 24" 36' 9" 29' 2" 25' 6"
S350 (3-1/2" Flange Structural Stud) Unpunched 600S350-54-P
Limiting Height: 49' 10" Spacing L/120 L/240 L/360 12" 49' 10" 39' 7" 34' 7" 16" 45' 3" 35' 11" 31' 5" 24" 39' 7" 31' 5" 27' 5"
S350 (3-1/2" Flange Structural Stud) Unpunched 600S350-68-P
Limiting Height: 54' 6" Spacing L/120 L/240 L/360 12" 54' 6" 43' 3" 37' 9" 16" 49' 6" 39' 3" 34' 4" 24" 43' 3" 34' 4" 30' 0"
S350 (3-1/2" Flange Structural Stud) Unpunched 600S350-97-P
Limiting Height: 60' 11" Spacing L/120 L/240 L/360 12" 60' 11" 48' 4" 42' 3" 16" 55' 4" 43' 11" 38' 5" 24" 48' 4" 38' 5" 33' 6"
S350 (3-1/2" Flange Structural Stud) Unpunched 600S350-118-P
Limiting Height: 64' 8" Spacing L/120 L/240 L/360 12" 64' 8" 51' 4" 44' 10" 16" 58' 9" 46' 7" 40' 9" 24" 51' 4" 40' 9" 35' 7"
S162 (1-5/8" Flange Structural Stud) Unpunched 725S162-33-P
Limiting Height: 38' 6" Spacing L/120 L/240 L/360 12" 38' 6" 32' 10" 28' 8" 16" 33' 4" 29' 10" 26' 1" 24" 27' 3" 26' 1" 22' 9"
S162 (1-5/8" Flange Structural Stud) Unpunched 725S162-43-P
Limiting Height: 45' 6" Spacing L/120 L/240 L/360 12" 45' 6" 36' 1" 31' 6" 16" 40' 0" 32' 9" 28' 8" 24" 32' 8" 28' 8" 25' 0"
S162 (1-5/8" Flange Structural Stud) Unpunched 725S162-54-P
Limiting Height: 48' 11" Spacing L/120 L/240 L/360 12" 48' 11" 38' 10" 33' 11" 16" 44' 5" 35' 3" 30' 10" 24" 38' 10" 30' 10" 26' 11"
S162 (1-5/8" Flange Structural Stud) Unpunched 725S162-68-P
Limiting Height: 52' 8" Spacing L/120 L/240 L/360 12" 52' 8" 41' 10" 36' 6" 16" 47' 10" 38' 0" 33' 2" 24" 41' 10" 33' 2" 29' 0"
S162 (1-5/8" Flange Structural Stud) Unpunched 725S162-97-P
Limiting Height: 58' 5" Spacing L/120 L/240 L/360 12" 58' 5" 46' 5" 40' 6" 16" 53' 1" 42' 2" 36' 10" 24" 46' 5" 36' 10" 32' 2"
S200 (2" Flange Structural Stud) Unpunched 725S200-33-P
Limiting Height: 41' 4" Spacing L/120 L/240 L/360 12" 41' 4" 34' 10" 30' 6" 16" 35' 9" 31' 8" 27' 8" 24" 29' 2" 27' 8" 24' 2"
S200 (2" Flange Structural Stud) Unpunched 725S200-43-P
Limiting Height: 47' 11" Spacing L/120 L/240 L/360 12" 47' 11" 38' 0" 33' 3" 16" 42' 11" 34' 7" 30' 2" 24" 35' 0" 30' 2" 26' 4"
S200 (2" Flange Structural Stud) Unpunched 725S200-54-P
Limiting Height: 51' 5" Spacing L/120 L/240 L/360 12" 51' 5" 40' 10" 35' 8" 16" 46' 9" 37' 1" 32' 5" 24" 40' 10" 32' 5" 28' 4"
S200 (2" Flange Structural Stud) Unpunched 725S200-68-P
Limiting Height: 55' 3" Spacing L/120 L/240 L/360 12" 55' 3" 43' 10" 38' 4" 16" 50' 2" 39' 10" 34' 10" 24" 43' 10" 34' 10" 30' 5"
S200 (2" Flange Structural Stud) Unpunched 725S200-97-P
Limiting Height: 61' 5" Spacing L/120 L/240 L/360 12" 61' 5" 48' 9" 42' 7" 16" 55' 10" 44' 3" 38' 8" 24" 48' 9" 38' 8" 33' 10"
S250 (2-1/2" Flange Structural Stud) Unpunched 725S250-33-P
Limiting Height: 42' 3" Spacing L/120 L/240 L/360 12" 42' 3" 36' 1" 31' 6" 16" 36' 7" 32' 9" 28' 8" 24" 29' 11" 28' 8" 25' 0"
S250 (2-1/2" Flange Structural Stud) Unpunched 725S250-43-P
Limiting Height: 50' 0" Spacing L/120 L/240 L/360 12" 50' 0" 39' 9" 34' 8" 16" 44' 0" 36' 1" 31' 6" 24" 35' 11" 31' 6" 27' 6"
S250 (2-1/2" Flange Structural Stud) Unpunched 725S250-54-P
Limiting Height: 53' 6" Spacing L/120 L/240 L/360 12" 53' 6" 42' 5" 37' 1" 16" 48' 7" 38' 7" 33' 8" 24" 42' 5" 33' 8" 29' 5"
S250 (2-1/2" Flange Structural Stud) Unpunched 725S250-68-P
Limiting Height: 57' 9" Spacing L/120 L/240 L/360 12" 57' 9" 45' 10" 40' 0" 16" 52' 5" 41' 8" 36' 4" 24" 45' 10" 36' 4" 31' 9"
S250 (2-1/2" Flange Structural Stud) Unpunched 725S250-97-P
Limiting Height: 64' 3" Spacing L/120 L/240 L/360 12" 64' 3" 51' 0" 44' 7" 16" 58' 5" 46' 4" 40' 6" 24" 51' 0" 40' 6" 35' 5"
S137 (1-3/8" Flange Structural Stud) Unpunched 800S137-33-P
Limiting Height: 37' 1" Spacing L/120 L/240 L/360 12" 37' 1" 34' 0" 29' 8" 16" 32' 1" 30' 11" 27' 0" 24" 26' 2" 26' 2" 23' 7"
S137 (1-3/8" Flange Structural Stud) Unpunched 800S137-43-P
Limiting Height: 44' 10" Spacing L/120 L/240 L/360 12" 44' 10" 37' 5" 32' 8" 16" 38' 10" 34' 0" 29' 9" 24" 31' 9" 29' 9" 25' 11"
S137 (1-3/8" Flange Structural Stud) Unpunched 800S137-54-P
Limiting Height: 50' 9" Spacing L/120 L/240 L/360 12" 50' 9" 40' 3" 35' 2" 16" 46' 1" 36' 7" 31' 11" 24" 40' 3" 31' 11" 27' 11"
S137 (1-3/8" Flange Structural Stud) Unpunched 800S137-68-P
Limiting Height: 54' 10" Spacing L/120 L/240 L/360 12" 54' 10" 43' 6" 38' 0" 16" 49' 10" 39' 6" 34' 6" 24" 43' 6" 34' 6" 30' 2"
S137 (1-3/8" Flange Structural Stud) Unpunched 800S137-97-P
Limiting Height: 60' 10" Spacing L/120 L/240 L/360 12" 60' 10" 48' 4" 42' 2" 16" 55' 4" 43' 11" 38' 4" 24" 48' 4" 38' 4" 33' 6"
S137 (1-3/8" Flange Structural Stud) Unpunched 800S137-118-P
Limiting Height: 64' 4" Spacing L/120 L/240 L/360 12" 64' 4" 51' 1" 44' 7" 16" 58' 5" 46' 5" 40' 6" 24" 51' 1" 40' 6" 35' 5"
S162 (1-5/8" Flange Structural Stud) Unpunched 800S162-33-P
Limiting Height: 40' 4" Spacing L/120 L/240 L/360 12" 40' 4" 35' 5" 30' 11" 16" 34' 11" 32' 2" 28' 1" 24" 28' 6" 28' 1" 24' 7"
S162 (1-5/8" Flange Structural Stud) Unpunched 800S162-43-P
Limiting Height: 48' 7" Spacing L/120 L/240 L/360 12" 48' 7" 38' 11" 34' 0" 16" 42' 1" 35' 4" 30' 11" 24" 34' 4" 30' 11" 27' 0"
S162 (1-5/8" Flange Structural Stud) Unpunched 800S162-54-P
Limiting Height: 52' 9" Spacing L/120 L/240 L/360 12" 52' 9" 41' 10" 36' 7" 16" 47' 11" 38' 1" 33' 3" 24" 41' 10" 33' 3" 29' 0"
S162 (1-5/8" Flange Structural Stud) Unpunched 800S162-68-P
Limiting Height: 57' 0" Spacing L/120 L/240 L/360 12" 57' 0" 45' 3" 39' 6" 16" 51' 10" 41' 1" 35' 11" 24" 45' 3" 35' 11" 31' 5"
S162 (1-5/8" Flange Structural Stud) Unpunched 800S162-97-P
Limiting Height: 63' 5" Spacing L/120 L/240 L/360 12" 63' 5" 50' 4" 43' 11" 16" 57' 7" 45' 9" 39' 11" 24" 50' 4" 39' 11" 34' 11"
S162 (1-5/8" Flange Structural Stud) Unpunched 800S162-118-P
Limiting Height: 67' 1" Spacing L/120 L/240 L/360 12" 67' 1" 53' 3" 46' 6" 16" 60' 11" 48' 4" 42' 3" 24" 53' 3" 42' 3" 36' 11"
S200 (2" Flange Structural Stud) Unpunched 800S200-33-P
Limiting Height: 43' 5" Spacing L/120 L/240 L/360 12" 43' 5" 37' 9" 33' 0" 16" 37' 7" 34' 3" 29' 11" 24" 30' 9" 29' 11" 26' 2"
S200 (2" Flange Structural Stud) Unpunched 800S200-43-P
Limiting Height: 51' 10" Spacing L/120 L/240 L/360 12" 51' 10" 41' 1" 35' 11" 16" 45' 2" 37' 4" 32' 8" 24" 36' 11" 32' 8" 28' 6"
S200 (2" Flange Structural Stud) Unpunched 800S200-54-P
Limiting Height: 55' 8" Spacing L/120 L/240 L/360 12" 55' 8" 44' 2" 38' 7" 16" 50' 7" 40' 2" 35' 1" 24" 44' 2" 35' 1" 30' 8"
S200 (2" Flange Structural Stud) Unpunched 800S200-68-P
Limiting Height: 59' 9" Spacing L/120 L/240 L/360 12" 59' 9" 47' 5" 41' 5" 16" 54' 4" 43' 1" 37' 8" 24" 47' 5" 37' 8" 32' 11"
S200 (2" Flange Structural Stud) Unpunched 800S200-97-P
Limiting Height: 66' 6" Spacing L/120 L/240 L/360 12" 66' 6" 52' 9" 46' 1" 16" 60' 5" 47' 11" 41' 11" 24" 52' 9" 41' 11" 36' 7"
S200 (2" Flange Structural Stud) Unpunched 800S200-118-P
Limiting Height: 70' 5" Spacing L/120 L/240 L/360 12" 70' 5" 55' 11" 48' 10" 16" 64' 0" 50' 9" 44' 4" 24" 55' 11" 44' 4" 38' 9"
S250 (2-1/2" Flange Structural Stud) Unpunched 800S250-33-P
Limiting Height: 44' 6" Spacing L/120 L/240 L/360 12" 44' 6" 39' 0" 34' 1" 16" 38' 6" 35' 5" 31' 0" 24" 31' 5" 31' 0" 27' 1"
S250 (2-1/2" Flange Structural Stud) Unpunched 800S250-43-P
Limiting Height: 53' 6" Spacing L/120 L/240 L/360 12" 53' 6" 42' 11" 37' 6" 16" 46' 4" 39' 0" 34' 0" 24" 37' 10" 34' 0" 29' 9"
S250 (2-1/2" Flange Structural Stud) Unpunched 800S250-54-P
Limiting Height: 57' 10" Spacing L/120 L/240 L/360 12" 57' 10" 45' 11" 40' 1" 16" 52' 7" 41' 8" 36' 5" 24" 45' 11" 36' 5" 31' 10"
S250 (2-1/2" Flange Structural Stud) Unpunched 800S250-68-P
Limiting Height: 62' 4" Spacing L/120 L/240 L/360 12" 62' 4" 49' 6" 43' 3" 16" 56' 8" 44' 11" 39' 3" 24" 49' 6" 39' 3" 34' 4"
S250 (2-1/2" Flange Structural Stud) Unpunched 800S250-97-P
Limiting Height: 69' 6" Spacing L/120 L/240 L/360 12" 69' 6" 55' 2" 48' 2" 16" 63' 2" 50' 1" 43' 9" 24" 55' 2" 43' 9" 38' 3"
S250 (2-1/2" Flange Structural Stud) Unpunched 800S250-118-P
Limiting Height: 73' 8" Spacing L/120 L/240 L/360 12" 73' 8" 58' 6" 51' 1" 16" 66' 11" 53' 1" 46' 5" 24" 58' 6" 46' 5" 40' 6"
S300 (3" Flange Structural Stud) Unpunched 800S300-33-P
Limiting Height: 45' 2" Spacing L/120 L/240 L/360 12" 45' 2" 40' 1" 35' 0" 16" 39' 1" 36' 5" 31' 9" 24" 31' 11" 31' 9" 27' 9"
S300 (3" Flange Structural Stud) Unpunched 800S300-43-P
Limiting Height: 54' 4" Spacing L/120 L/240 L/360 12" 54' 4" 44' 2" 38' 7" 16" 47' 1" 40' 1" 35' 0" 24" 38' 5" 35' 0" 30' 7"
S300 (3" Flange Structural Stud) Unpunched 800S300-54-P
Limiting Height: 59' 1" Spacing L/120 L/240 L/360 12" 59' 1" 46' 11" 41' 0" 16" 53' 8" 42' 7" 37' 3" 24" 46' 11" 37' 3" 32' 6"
S300 (3" Flange Structural Stud) Unpunched 800S300-68-P
Limiting Height: 64' 2" Spacing L/120 L/240 L/360 12" 64' 2" 50' 11" 44' 6" 16" 58' 4" 46' 3" 40' 5" 24" 50' 11" 40' 5" 35' 4"
S300 (3" Flange Structural Stud) Unpunched 800S300-97-P
Limiting Height: 71' 11" Spacing L/120 L/240 L/360 12" 71' 11" 57' 1" 49' 10" 16" 65' 4" 51' 10" 45' 3" 24" 57' 1" 45' 3" 39' 7"
S300 (3" Flange Structural Stud) Unpunched 800S300-118-P
Limiting Height: 76' 5" Spacing L/120 L/240 L/360 12" 76' 5" 60' 8" 53' 0" 16" 69' 5" 55' 1" 48' 2" 24" 60' 8" 48' 2" 42' 1"
S350 (3-1/2" Flange Structural Stud) Unpunched 800S350-33-P
Limiting Height: 48' 7" Spacing L/120 L/240 L/360 12" 48' 7" 41' 6" 36' 3" 16" 42' 1" 37' 8" 32' 11" 24" 34' 4" 32' 11" 28' 9"
S350 (3-1/2" Flange Structural Stud) Unpunched 800S350-43-P
Limiting Height: 57' 9" Spacing L/120 L/240 L/360 12" 57' 9" 45' 10" 40' 1" 16" 52' 6" 41' 8" 36' 5" 24" 43' 0" 36' 5" 31' 10"
S350 (3-1/2" Flange Structural Stud) Unpunched 800S350-54-P
Limiting Height: 62' 3" Spacing L/120 L/240 L/360 12" 62' 3" 49' 5" 43' 2" 16" 56' 7" 44' 11" 39' 2" 24" 49' 5" 39' 2" 34' 3"
S350 (3-1/2" Flange Structural Stud) Unpunched 800S350-68-P
Limiting Height: 67' 10" Spacing L/120 L/240 L/360 12" 67' 10" 53' 10" 47' 1" 16" 61' 8" 48' 11" 42' 9" 24" 53' 10" 42' 9" 37' 4"
S350 (3-1/2" Flange Structural Stud) Unpunched 800S350-97-P
Limiting Height: 76' 0" Spacing L/120 L/240 L/360 12" 76' 0" 60' 4" 52' 8" 16" 69' 1" 54' 10" 47' 11" 24" 60' 4" 47' 11" 41' 10"
S350 (3-1/2" Flange Structural Stud) Unpunched 800S350-118-P
Limiting Height: 80' 8" Spacing L/120 L/240 L/360 12" 80' 8" 64' 1" 55' 11" 16" 73' 4" 58' 2" 50' 10" 24" 64' 1" 50' 10" 44' 5"
S162 (1-5/8" Flange Structural Stud) Unpunched 925S162-43-P
Limiting Height: 52' 1" Spacing L/120 L/240 L/360 12" 52' 1" 43' 6" 38' 0" 16" 45' 1" 39' 7" 34' 7" 24" 36' 10" 34' 7" 30' 2"
S162 (1-5/8" Flange Structural Stud) Unpunched 925S162-54-P
Limiting Height: 59' 0" Spacing L/120 L/240 L/360 12" 59' 0" 46' 10" 40' 11" 16" 53' 8" 42' 7" 37' 2" 24" 46' 10" 37' 2" 32' 6"
S162 (1-5/8" Flange Structural Stud) Unpunched 925S162-68-P
Limiting Height: 63' 11" Spacing L/120 L/240 L/360 12" 63' 11" 50' 9" 44' 4" 16" 58' 1" 46' 1" 40' 3" 24" 50' 9" 40' 3" 35' 2"
S162 (1-5/8" Flange Structural Stud) Unpunched 925S162-97-P
Limiting Height: 71' 6" Spacing L/120 L/240 L/360 12" 71' 6" 56' 9" 49' 7" 16" 65' 0" 51' 7" 45' 1" 24" 56' 9" 45' 1" 39' 4"
S200 (2" Flange Structural Stud) Unpunched 925S200-43-P
Limiting Height: 56' 2" Spacing L/120 L/240 L/360 12" 56' 2" 45' 7" 39' 9" 16" 48' 8" 41' 5" 36' 2" 24" 39' 9" 36' 2" 31' 7"
S200 (2" Flange Structural Stud) Unpunched 925S200-54-P
Limiting Height: 61' 10" Spacing L/120 L/240 L/360 12" 61' 10" 49' 1" 42' 10" 16" 56' 2" 44' 7" 38' 11" 24" 49' 1" 38' 11" 34' 0"
S200 (2" Flange Structural Stud) Unpunched 925S200-68-P
Limiting Height: 66' 10" Spacing L/120 L/240 L/360 12" 66' 10" 53' 1" 46' 4" 16" 60' 9" 48' 3" 42' 1" 24" 53' 1" 42' 1" 36' 10"
S200 (2" Flange Structural Stud) Unpunched 925S200-97-P
Limiting Height: 74' 10" Spacing L/120 L/240 L/360 12" 74' 10" 59' 4" 51' 10" 16" 68' 0" 53' 11" 47' 1" 24" 59' 4" 47' 1" 41' 2"
S250 (2-1/2" Flange Structural Stud) Unpunched 925S250-43-P
Limiting Height: 57' 8" Spacing L/120 L/240 L/360 12" 57' 8" 48' 1" 42' 0" 16" 50' 0" 43' 8" 38' 2" 24" 40' 10" 38' 2" 33' 4"
S250 (2-1/2" Flange Structural Stud) Unpunched 925S250-54-P
Limiting Height: 65' 0" Spacing L/120 L/240 L/360 12" 65' 0" 51' 7" 45' 1" 16" 59' 1" 46' 10" 40' 11" 24" 51' 7" 40' 11" 35' 9"
S250 (2-1/2" Flange Structural Stud) Unpunched 925S250-68-P
Limiting Height: 69' 11" Spacing L/120 L/240 L/360 12" 69' 11" 55' 6" 48' 6" 16" 63' 6" 50' 5" 44' 1" 24" 55' 6" 44' 1" 38' 6"
S250 (2-1/2" Flange Structural Stud) Unpunched 925S250-97-P
Limiting Height: 78' 0" Spacing L/120 L/240 L/360 12" 78' 0" 61' 11" 54' 1" 16" 70' 10" 56' 3" 49' 2" 24" 61' 11" 49' 2" 42' 11"
S162 (1-5/8" Flange Structural Stud) Unpunched 1000S162-43-P
Limiting Height: 53' 11" Spacing L/120 L/240 L/360 12" 53' 11" 46' 2" 40' 4" 16" 46' 8" 42' 0" 36' 8" 24" 38' 2" 36' 8" 32' 0"
S162 (1-5/8" Flange Structural Stud) Unpunched 1000S162-54-P
Limiting Height: 62' 8" Spacing L/120 L/240 L/360 12" 62' 8" 49' 9" 43' 6" 16" 56' 11" 45' 2" 39' 6" 24" 49' 9" 39' 6" 34' 6"
S162 (1-5/8" Flange Structural Stud) Unpunched 1000S162-68-P
Limiting Height: 68' 0" Spacing L/120 L/240 L/360 12" 68' 0" 53' 11" 47' 2" 16" 61' 9" 49' 0" 42' 10" 24" 53' 11" 42' 10" 37' 5"
S162 (1-5/8" Flange Structural Stud) Unpunched 1000S162-97-P
Limiting Height: 76' 4" Spacing L/120 L/240 L/360 12" 76' 4" 60' 7" 52' 11" 16" 69' 4" 55' 1" 48' 1" 24" 60' 7" 48' 1" 42' 0"
S162 (1-5/8" Flange Structural Stud) Unpunched 1000S162-118-P
Limiting Height: 80' 10" Spacing L/120 L/240 L/360 12" 80' 10" 64' 2" 56' 1" 16" 73' 6" 58' 4" 50' 11" 24" 64' 2" 50' 11" 44' 6"
S200 (2" Flange Structural Stud) Unpunched 1000S200-43-P
Limiting Height: 58' 4" Spacing L/120 L/240 L/360 12" 58' 4" 48' 4" 42' 2" 16" 50' 6" 43' 11" 38' 4" 24" 41' 3" 38' 4" 33' 6"
S200 (2" Flange Structural Stud) Unpunched 1000S200-54-P
Limiting Height: 65' 7" Spacing L/120 L/240 L/360 12" 65' 7" 52' 1" 45' 6" 16" 59' 7" 47' 4" 41' 4" 24" 52' 1" 41' 4" 36' 1"
S200 (2" Flange Structural Stud) Unpunched 1000S200-68-P
Limiting Height: 71' 0" Spacing L/120 L/240 L/360 12" 71' 0" 56' 5" 49' 3" 16" 64' 6" 51' 3" 44' 9" 24" 56' 5" 44' 9" 39' 1"
S200 (2" Flange Structural Stud) Unpunched 1000S200-97-P
Limiting Height: 79' 9" Spacing L/120 L/240 L/360 12" 79' 9" 63' 3" 55' 3" 16" 72' 5" 57' 6" 50' 3" 24" 63' 3" 50' 3" 43' 11"
S200 (2" Flange Structural Stud) Unpunched 1000S200-118-P
Limiting Height: 84' 7" Spacing L/120 L/240 L/360 12" 84' 7" 67' 1" 58' 8" 16" 76' 10" 61' 0" 53' 3" 24" 67' 1" 53' 3" 46' 6"
S250 (2-1/2" Flange Structural Stud) Unpunched 1000S250-43-P
Limiting Height: 60' 0" Spacing L/120 L/240 L/360 12" 60' 0" 51' 2" 44' 8" 16" 52' 0" 46' 6" 40' 7" 24" 42' 5" 40' 7" 35' 6"
S250 (2-1/2" Flange Structural Stud) Unpunched 1000S250-54-P
Limiting Height: 69' 3" Spacing L/120 L/240 L/360 12" 69' 3" 54' 11" 48' 0" 16" 62' 11" 49' 11" 43' 7" 24" 54' 11" 43' 7" 38' 1"
S250 (2-1/2" Flange Structural Stud) Unpunched 1000S250-68-P
Limiting Height: 74' 5" Spacing L/120 L/240 L/360 12" 74' 5" 59' 1" 51' 8" 16" 67' 8" 53' 8" 46' 11" 24" 59' 1" 46' 11" 41' 0"
S250 (2-1/2" Flange Structural Stud) Unpunched 1000S250-97-P
Limiting Height: 83' 0" Spacing L/120 L/240 L/360 12" 83' 0" 65' 11" 57' 7" 16" 75' 5" 59' 10" 52' 4" 24" 65' 11" 52' 4" 45' 8"
S250 (2-1/2" Flange Structural Stud) Unpunched 1000S250-118-P
Limiting Height: 88' 1" Spacing L/120 L/240 L/360 12" 88' 1" 69' 11" 61' 1" 16" 80' 1" 63' 6" 55' 6" 24" 69' 11" 55' 6" 48' 6"
S300 (3" Flange Structural Stud) Unpunched 1000S300-43-P
Limiting Height: 61' 1" Spacing L/120 L/240 L/360 12" 61' 1" 52' 9" 46' 1" 16" 52' 10" 47' 11" 41' 10" 24" 43' 2" 41' 10" 36' 7"
S300 (3" Flange Structural Stud) Unpunched 1000S300-54-P
Limiting Height: 70' 8" Spacing L/120 L/240 L/360 12" 70' 8" 56' 1" 49' 0" 16" 64' 2" 50' 11" 44' 6" 24" 56' 1" 44' 6" 38' 10"
S300 (3" Flange Structural Stud) Unpunched 1000S300-68-P
Limiting Height: 76' 6" Spacing L/120 L/240 L/360 12" 76' 6" 60' 9" 53' 1" 16" 69' 6" 55' 2" 48' 3" 24" 60' 9" 48' 3" 42' 1"
S300 (3" Flange Structural Stud) Unpunched 1000S300-97-P
Limiting Height: 85' 8" Spacing L/120 L/240 L/360 12" 85' 8" 68' 0" 59' 5" 16" 77' 10" 61' 9" 54' 0" 24" 68' 0" 54' 0" 47' 2"
S300 (3" Flange Structural Stud) Unpunched 1000S300-118-P
Limiting Height: 91' 2" Spacing L/120 L/240 L/360 12" 91' 2" 72' 4" 63' 2" 16" 82' 10" 65' 9" 57' 5" 24" 72' 4" 57' 5" 50' 2"
S350 (3-1/2" Flange Structural Stud) Unpunched 1000S350-43-P
Limiting Height: 68' 5" Spacing L/120 L/240 L/360 12" 68' 5" 54' 8" 47' 9" 16" 59' 3" 49' 8" 43' 5" 24" 48' 5" 43' 5" 37' 11"
S350 (3-1/2" Flange Structural Stud) Unpunched 1000S350-54-P
Limiting Height: 74' 2" Spacing L/120 L/240 L/360 12" 74' 2" 58' 11" 51' 5" 16" 67' 5" 53' 6" 46' 9" 24" 58' 11" 46' 9" 40' 10"
S350 (3-1/2" Flange Structural Stud) Unpunched 1000S350-68-P
Limiting Height: 80' 8" Spacing L/120 L/240 L/360 12" 80' 8" 64' 0" 55' 11" 16" 73' 4" 58' 2" 50' 10" 24" 64' 0" 50' 10" 44' 5"
S350 (3-1/2" Flange Structural Stud) Unpunched 1000S350-97-P
Limiting Height: 90' 4" Spacing L/120 L/240 L/360 12" 90' 4" 71' 9" 62' 8" 16" 82' 1" 65' 2" 56' 11" 24" 71' 9" 56' 11" 49' 9"
S350 (3-1/2" Flange Structural Stud) Unpunched 1000S350-118-P
Limiting Height: 96' 0" Spacing L/120 L/240 L/360 12" 96' 0" 76' 3" 66' 7" 16" 87' 3" 69' 3" 60' 6" 24" 76' 3" 60' 6" 52' 10"
S162 (1-5/8" Flange Structural Stud) Unpunched 1150S162-43-P
Limiting Height: 57' 1" Spacing L/120 L/240 L/360 12" 57' 1" 51' 5" 44' 11" 16" 49' 5" 46' 9" 40' 10" 24" 40' 4" 40' 4" 35' 8"
S162 (1-5/8" Flange Structural Stud) Unpunched 1150S162-54-P
Limiting Height: 69' 10" Spacing L/120 L/240 L/360 12" 69' 10" 55' 5" 48' 5" 16" 63' 5" 50' 4" 44' 0" 24" 54' 0" 44' 0" 38' 5"
S162 (1-5/8" Flange Structural Stud) Unpunched 1150S162-68-P
Limiting Height: 75' 10" Spacing L/120 L/240 L/360 12" 75' 10" 60' 2" 52' 7" 16" 68' 11" 54' 8" 47' 9" 24" 60' 2" 47' 9" 41' 9"
S162 (1-5/8" Flange Structural Stud) Unpunched 1150S162-97-P
Limiting Height: 85' 10" Spacing L/120 L/240 L/360 12" 85' 10" 68' 1" 59' 6" 16" 78' 0" 61' 11" 54' 1" 24" 68' 1" 54' 1" 47' 3"
S200 (2" Flange Structural Stud) Unpunched 1150S200-43-P
Limiting Height: 62' 1" Spacing L/120 L/240 L/360 12" 62' 1" 53' 8" 46' 11" 16" 53' 9" 48' 10" 42' 8" 24" 43' 11" 42' 8" 37' 3"
S200 (2" Flange Structural Stud) Unpunched 1150S200-54-P
Limiting Height: 73' 0" Spacing L/120 L/240 L/360 12" 73' 0" 57' 11" 50' 7" 16" 66' 4" 52' 8" 46' 0" 24" 57' 11" 46' 0" 40' 2"
S200 (2" Flange Structural Stud) Unpunched 1150S200-68-P
Limiting Height: 79' 2" Spacing L/120 L/240 L/360 12" 79' 2" 62' 10" 54' 10" 16" 71' 11" 57' 1" 49' 10" 24" 62' 10" 49' 10" 43' 7"
S200 (2" Flange Structural Stud) Unpunched 1150S200-97-P
Limiting Height: 89' 5" Spacing L/120 L/240 L/360 12" 89' 5" 71' 0" 62' 0" 16" 81' 3" 64' 6" 56' 4" 24" 71' 0" 56' 4" 49' 2"
S250 (2-1/2" Flange Structural Stud) Unpunched 1150S250-43-P
Limiting Height: 64' 2" Spacing L/120 L/240 L/360 12" 64' 2" 56' 0" 48' 11" 16" 55' 7" 50' 11" 44' 5" 24" 45' 4" 44' 5" 38' 10"
S250 (2-1/2" Flange Structural Stud) Unpunched 1150S250-54-P
Limiting Height: 76' 0" Spacing L/120 L/240 L/360 12" 76' 0" 60' 4" 52' 8" 16" 69' 1" 54' 10" 47' 11" 24" 60' 4" 47' 11" 41' 10"
S250 (2-1/2" Flange Structural Stud) Unpunched 1150S250-68-P
Limiting Height: 82' 6" Spacing L/120 L/240 L/360 12" 82' 6" 65' 5" 57' 2" 16" 74' 11" 59' 6" 51' 11" 24" 65' 5" 51' 11" 45' 5"
S250 (2-1/2" Flange Structural Stud) Unpunched 1150S250-97-P
Limiting Height: 92' 11" Spacing L/120 L/240 L/360 12" 92' 11" 73' 9" 64' 5" 16" 84' 5" 67' 0" 58' 6" 24" 73' 9" 58' 6" 51' 2"
S162 (1-5/8" Flange Structural Stud) Unpunched 1200S162-54-P
Limiting Height: 72' 1" Spacing L/120 L/240 L/360 12" 72' 1" 57' 3" 50' 0" 16" 65' 6" 52' 0" 45' 5" 24" 54' 11" 45' 5" 39' 8"
S162 (1-5/8" Flange Structural Stud) Unpunched 1200S162-68-P
Limiting Height: 78' 5" Spacing L/120 L/240 L/360 12" 78' 5" 62' 3" 54' 4" 16" 71' 3" 56' 7" 49' 5" 24" 62' 3" 49' 5" 43' 2"
S162 (1-5/8" Flange Structural Stud) Unpunched 1200S162-97-P
Limiting Height: 88' 10" Spacing L/120 L/240 L/360 12" 88' 10" 70' 6" 61' 7" 16" 80' 9" 64' 1" 56' 0" 24" 70' 6" 56' 0" 48' 11"
S162 (1-5/8" Flange Structural Stud) Unpunched 1200S162-118-P
Limiting Height: 94' 6" Spacing L/120 L/240 L/360 12" 94' 6" 75' 0" 65' 6" 16" 85' 10" 68' 1" 59' 6" 24" 75' 0" 59' 6" 52' 0"
S200 (2" Flange Structural Stud) Unpunched 1200S200-54-P
Limiting Height: 75' 5" Spacing L/120 L/240 L/360 12" 75' 5" 59' 10" 52' 3" 16" 68' 6" 54' 4" 47' 6" 24" 59' 7" 47' 6" 41' 6"
S200 (2" Flange Structural Stud) Unpunched 1200S200-68-P
Limiting Height: 81' 9" Spacing L/120 L/240 L/360 12" 81' 9" 64' 11" 56' 9" 16" 74' 4" 59' 0" 51' 6" 24" 64' 11" 51' 6" 45' 0"
S200 (2" Flange Structural Stud) Unpunched 1200S200-97-P
Limiting Height: 92' 6" Spacing L/120 L/240 L/360 12" 92' 6" 73' 5" 64' 2" 16" 84' 0" 66' 8" 58' 3" 24" 73' 5" 58' 3" 50' 11"
S200 (2" Flange Structural Stud) Unpunched 1200S200-118-P
Limiting Height: 98' 5" Spacing L/120 L/240 L/360 12" 98' 5" 78' 1" 68' 3" 16" 89' 5" 71' 0" 62' 0" 24" 78' 1" 62' 0" 54' 2"
S250 (2-1/2" Flange Structural Stud) Unpunched 1200S250-54-P
Limiting Height: 78' 6" Spacing L/120 L/240 L/360 12" 78' 6" 62' 4" 54' 5" 16" 71' 4" 56' 7" 49' 5" 24" 61' 7" 49' 5" 43' 2"
S250 (2-1/2" Flange Structural Stud) Unpunched 1200S250-68-P
Limiting Height: 85' 2" Spacing L/120 L/240 L/360 12" 85' 2" 67' 7" 59' 1" 16" 77' 5" 61' 5" 53' 8" 24" 67' 7" 53' 8" 46' 11"
S250 (2-1/2" Flange Structural Stud) Unpunched 1200S250-97-P
Limiting Height: 96' 1" Spacing L/120 L/240 L/360 12" 96' 1" 76' 3" 66' 8" 16" 87' 4" 69' 4" 60' 6" 24" 76' 3" 60' 6" 52' 11"
S250 (2-1/2" Flange Structural Stud) Unpunched 1200S250-118-P
Limiting Height: 102' 3" Spacing L/120 L/240 L/360 12" 102' 3" 81' 2" 70' 10" 16" 92' 10" 73' 9" 64' 5" 24" 81' 2" 64' 5" 56' 3"
S300 (3" Flange Structural Stud) Unpunched 1200S300-54-P
Limiting Height: 82' 0" Spacing L/120 L/240 L/360 12" 82' 0" 65' 1" 56' 10" 16" 74' 6" 59' 2" 51' 8" 24" 62' 10" 51' 8" 45' 2"
S300 (3" Flange Structural Stud) Unpunched 1200S300-68-P
Limiting Height: 88' 7" Spacing L/120 L/240 L/360 12" 88' 7" 70' 4" 61' 5" 16" 80' 6" 63' 11" 55' 10" 24" 70' 4" 55' 10" 48' 9"
S300 (3" Flange Structural Stud) Unpunched 1200S300-97-P
Limiting Height: 99' 1" Spacing L/120 L/240 L/360 12" 99' 1" 78' 8" 68' 8" 16" 90' 0" 71' 5" 62' 5" 24" 78' 8" 62' 5" 54' 6"
S300 (3" Flange Structural Stud) Unpunched 1200S300-118-P
Limiting Height: 105' 5" Spacing L/120 L/240 L/360 12" 105' 5" 83' 8" 73' 1" 16" 95' 10" 76' 1" 66' 5" 24" 83' 8" 66' 5" 58' 0"
S350 (3-1/2" Flange Structural Stud) Unpunched 1200S350-54-P
Limiting Height: 85' 10" Spacing L/120 L/240 L/360 12" 85' 10" 68' 1" 59' 6" 16" 77' 11" 61' 10" 54' 1" 24" 68' 1" 54' 1" 47' 3"
S350 (3-1/2" Flange Structural Stud) Unpunched 1200S350-68-P
Limiting Height: 93' 3" Spacing L/120 L/240 L/360 12" 93' 3" 74' 0" 64' 8" 16" 84' 9" 67' 3" 58' 9" 24" 74' 0" 58' 9" 51' 4"
S350 (3-1/2" Flange Structural Stud) Unpunched 1200S350-97-P
Limiting Height: 104' 4" Spacing L/120 L/240 L/360 12" 104' 4" 82' 9" 72' 4" 16" 94' 9" 75' 3" 65' 8" 24" 82' 9" 65' 8" 57' 5"
S350 (3-1/2" Flange Structural Stud) Unpunched 1200S350-118-P
Limiting Height: 110' 11" Spacing L/120 L/240 L/360 12" 110' 11" 88' 0" 76' 11" 16" 100' 9" 80' 0" 69' 10" 24" 88' 0" 69' 10" 61' 0"
S162 (1-5/8" Flange Structural Stud) Unpunched 1350S162-54-P
Limiting Height: 78' 11" Spacing L/120 L/240 L/360 12" 78' 11" 62' 8" 54' 9" 16" 70' 2" 56' 11" 49' 9" 24" 57' 4" 49' 9" 43' 5"
S162 (1-5/8" Flange Structural Stud) Unpunched 1350S162-68-P
Limiting Height: 86' 0" Spacing L/120 L/240 L/360 12" 86' 0" 68' 3" 59' 7" 16" 78' 1" 62' 0" 54' 2" 24" 68' 3" 54' 2" 47' 4"
S162 (1-5/8" Flange Structural Stud) Unpunched 1350S162-97-P
Limiting Height: 97' 9" Spacing L/120 L/240 L/360 12" 97' 9" 77' 7" 67' 9" 16" 88' 10" 70' 6" 61' 7" 24" 77' 7" 61' 7" 53' 9"
S200 (2" Flange Structural Stud) Unpunched 1350S200-54-P
Limiting Height: 82' 5" Spacing L/120 L/240 L/360 12" 82' 5" 65' 5" 57' 2" 16" 74' 11" 59' 5" 51' 11" 24" 62' 6" 51' 11" 45' 4"
S200 (2" Flange Structural Stud) Unpunched 1350S200-68-P
Limiting Height: 89' 7" Spacing L/120 L/240 L/360 12" 89' 7" 71' 1" 62' 1" 16" 81' 4" 64' 7" 56' 5" 24" 71' 1" 56' 5" 49' 3"
S200 (2" Flange Structural Stud) Unpunched 1350S200-97-P
Limiting Height: 101' 7" Spacing L/120 L/240 L/360 12" 101' 7" 80' 8" 70' 5" 16" 92' 4" 73' 3" 64' 0" 24" 80' 8" 64' 0" 55' 11"
S250 (2-1/2" Flange Structural Stud) Unpunched 1350S250-54-P
Limiting Height: 85' 10" Spacing L/120 L/240 L/360 12" 85' 10" 68' 1" 59' 6" 16" 77' 11" 61' 10" 54' 1" 24" 64' 10" 54' 1" 47' 3"
S250 (2-1/2" Flange Structural Stud) Unpunched 1350S250-68-P
Limiting Height: 93' 3" Spacing L/120 L/240 L/360 12" 93' 3" 74' 0" 64' 8" 16" 84' 8" 67' 3" 58' 9" 24" 74' 0" 58' 9" 51' 4"
S250 (2-1/2" Flange Structural Stud) Unpunched 1350S250-97-P
Limiting Height: 105' 5" Spacing L/120 L/240 L/360 12" 105' 5" 83' 8" 73' 1" 16" 95' 9" 76' 0" 66' 5" 24" 83' 8" 66' 5" 58' 0"
S162 (1-5/8" Flange Structural Stud) Unpunched 1400S162-54-P
Limiting Height: 81' 2" Spacing L/120 L/240 L/360 12" 81' 2" 64' 5" 56' 3" 16" 71' 1" 58' 6" 51' 1" 24" 58' 0" 51' 1" 44' 8"
S162 (1-5/8" Flange Structural Stud) Unpunched 1400S162-68-P
Limiting Height: 88' 5" Spacing L/120 L/240 L/360 12" 88' 5" 70' 2" 61' 4" 16" 80' 4" 63' 9" 55' 9" 24" 69' 3" 55' 9" 48' 8"
S162 (1-5/8" Flange Structural Stud) Unpunched 1400S162-97-P
Limiting Height: 100' 8" Spacing L/120 L/240 L/360 12" 100' 8" 79' 11" 69' 10" 16" 91' 6" 72' 7" 63' 5" 24" 79' 11" 63' 5" 55' 5"
S162 (1-5/8" Flange Structural Stud) Unpunched 1400S162-118-P
Limiting Height: 107' 10" Spacing L/120 L/240 L/360 12" 107' 10" 85' 7" 74' 9" 16" 97' 11" 77' 9" 67' 11" 24" 85' 7" 67' 11" 59' 4"
S200 (2" Flange Structural Stud) Unpunched 1400S200-54-P
Limiting Height: 84' 9" Spacing L/120 L/240 L/360 12" 84' 9" 67' 3" 58' 9" 16" 77' 0" 61' 1" 53' 5" 24" 63' 4" 53' 5" 46' 8"
S200 (2" Flange Structural Stud) Unpunched 1400S200-68-P
Limiting Height: 92' 1" Spacing L/120 L/240 L/360 12" 92' 1" 73' 1" 63' 10" 16" 83' 8" 66' 5" 58' 0" 24" 73' 1" 58' 0" 50' 8"
S200 (2" Flange Structural Stud) Unpunched 1400S200-97-P
Limiting Height: 104' 7" Spacing L/120 L/240 L/360 12" 104' 7" 83' 0" 72' 6" 16" 95' 0" 75' 5" 65' 11" 24" 83' 0" 65' 11" 57' 7"
S200 (2" Flange Structural Stud) Unpunched 1400S200-118-P
Limiting Height: 112' 0" Spacing L/120 L/240 L/360 12" 112' 0" 88' 10" 77' 8" 16" 101' 9" 80' 9" 70' 6" 24" 88' 10" 70' 6" 61' 7"
S250 (2-1/2" Flange Structural Stud) Unpunched 1400S250-54-P
Limiting Height: 88' 2" Spacing L/120 L/240 L/360 12" 88' 2" 70' 0" 61' 2" 16" 80' 1" 63' 7" 55' 7" 24" 65' 10" 55' 7" 48' 6"
S250 (2-1/2" Flange Structural Stud) Unpunched 1400S250-68-P
Limiting Height: 95' 10" Spacing L/120 L/240 L/360 12" 95' 10" 76' 1" 66' 5" 16" 87' 1" 69' 1" 60' 4" 24" 76' 1" 60' 4" 52' 9"
S250 (2-1/2" Flange Structural Stud) Unpunched 1400S250-97-P
Limiting Height: 108' 5" Spacing L/120 L/240 L/360 12" 108' 5" 86' 1" 75' 2" 16" 98' 6" 78' 3" 68' 4" 24" 86' 1" 68' 4" 59' 8"
S250 (2-1/2" Flange Structural Stud) Unpunched 1400S250-118-P
Limiting Height: 116' 0" Spacing L/120 L/240 L/360 12" 116' 0" 92' 1" 80' 5" 16" 105' 5" 83' 8" 73' 1" 24" 92' 1" 73' 1" 63' 10"
S300 (3" Flange Structural Stud) Unpunched 1400S300-54-P
Limiting Height: 89' 5" Spacing L/120 L/240 L/360 12" 89' 5" 70' 11" 62' 0" 16" 81' 3" 64' 5" 56' 4" 24" 67' 5" 56' 4" 49' 2"
S300 (3" Flange Structural Stud) Unpunched 1400S300-68-P
Limiting Height: 98' 4" Spacing L/120 L/240 L/360 12" 98' 4" 78' 1" 68' 2" 16" 89' 4" 70' 11" 62' 0" 24" 78' 1" 62' 0" 54' 2"
S300 (3" Flange Structural Stud) Unpunched 1400S300-97-P
Limiting Height: 111' 9" Spacing L/120 L/240 L/360 12" 111' 9" 88' 8" 77' 6" 16" 101' 6" 80' 7" 70' 5" 24" 88' 8" 70' 5" 61' 6"
S300 (3" Flange Structural Stud) Unpunched 1400S300-118-P
Limiting Height: 119' 10" Spacing L/120 L/240 L/360 12" 119' 10" 95' 1" 83' 1" 16" 108' 10" 86' 5" 75' 6" 24" 95' 1" 75' 6" 65' 11"
S350 (3-1/2" Flange Structural Stud) Unpunched 1400S350-54-P
Limiting Height: 95' 7" Spacing L/120 L/240 L/360 12" 95' 7" 75' 11" 66' 3" 16" 86' 10" 68' 11" 60' 3" 24" 75' 11" 60' 3" 52' 7"
S350 (3-1/2" Flange Structural Stud) Unpunched 1400S350-68-P
Limiting Height: 105' 5" Spacing L/120 L/240 L/360 12" 105' 5" 83' 8" 73' 1" 16" 95' 10" 76' 0" 66' 5" 24" 83' 8" 66' 5" 58' 0"
S350 (3-1/2" Flange Structural Stud) Unpunched 1400S350-97-P
Limiting Height: 117' 11" Spacing L/120 L/240 L/360 12" 117' 11" 93' 7" 81' 9" 16" 107' 1" 85' 0" 74' 3" 24" 93' 7" 74' 3" 64' 11"
S350 (3-1/2" Flange Structural Stud) Unpunched 1400S350-118-P
Limiting Height: 125' 5" Spacing L/120 L/240 L/360 12" 125' 5" 99' 6" 86' 11" 16" 113' 11" 90' 5" 79' 0" 24" 99' 6" 79' 0" 69' 0"
S162 (1-5/8" Flange Structural Stud) Unpunched 1600S162-68-P
Limiting Height: 98' 1" Spacing L/120 L/240 L/360 12" 98' 1" 77' 10" 68' 0" 16" 88' 10" 70' 9" 61' 10" 24" 72' 7" 61' 10" 54' 0"
S162 (1-5/8" Flange Structural Stud) Unpunched 1600S162-97-P
Limiting Height: 112' 1" Spacing L/120 L/240 L/360 12" 112' 1" 89' 0" 77' 9" 16" 101' 10" 80' 10" 70' 7" 24" 89' 0" 70' 7" 61' 8"
S162 (1-5/8" Flange Structural Stud) Unpunched 1600S162-118-P
Limiting Height: 120' 5" Spacing L/120 L/240 L/360 12" 120' 5" 95' 7" 83' 6" 16" 109' 5" 86' 10" 75' 10" 24" 95' 7" 75' 10" 66' 3"
S200 (2" Flange Structural Stud) Unpunched 1600S200-68-P
Limiting Height: 102' 1" Spacing L/120 L/240 L/360 12" 102' 1" 81' 0" 70' 9" 16" 92' 9" 73' 7" 64' 3" 24" 79' 1" 64' 3" 56' 2"
S200 (2" Flange Structural Stud) Unpunched 1600S200-97-P
Limiting Height: 116' 3" Spacing L/120 L/240 L/360 12" 116' 3" 92' 3" 80' 7" 16" 105' 8" 83' 10" 73' 3" 24" 92' 3" 73' 3" 64' 0"
S200 (2" Flange Structural Stud) Unpunched 1600S200-118-P
Limiting Height: 124' 9" Spacing L/120 L/240 L/360 12" 124' 9" 99' 0" 86' 6" 16" 113' 4" 90' 0" 78' 7" 24" 99' 0" 78' 7" 68' 8"
S250 (2-1/2" Flange Structural Stud) Unpunched 1600S250-68-P
Limiting Height: 106' 1" Spacing L/120 L/240 L/360 12" 106' 1" 84' 3" 73' 7" 16" 96' 5" 76' 6" 66' 10" 24" 82' 6" 66' 10" 58' 5"
S250 (2-1/2" Flange Structural Stud) Unpunched 1600S250-97-P
Limiting Height: 120' 5" Spacing L/120 L/240 L/360 12" 120' 5" 95' 7" 83' 6" 16" 109' 5" 86' 10" 75' 10" 24" 95' 7" 75' 10" 66' 3"
S250 (2-1/2" Flange Structural Stud) Unpunched 1600S250-118-P
Limiting Height: 129' 0" Spacing L/120 L/240 L/360 12" 129' 0" 102' 5" 89' 6" 16" 117' 3" 93' 1" 81' 3" 24" 102' 5" 81' 3" 71' 0"
S300 (3" Flange Structural Stud) Unpunched 1600S300-68-P
Limiting Height: 108' 10" Spacing L/120 L/240 L/360 12" 108' 10" 86' 4" 75' 5" 16" 98' 10" 78' 6" 68' 6" 24" 84' 10" 68' 6" 59' 11"
S300 (3" Flange Structural Stud) Unpunched 1600S300-97-P
Limiting Height: 124' 0" Spacing L/120 L/240 L/360 12" 124' 0" 98' 5" 86' 0" 16" 112' 8" 89' 5" 78' 1" 24" 98' 5" 78' 1" 68' 3"
S300 (3" Flange Structural Stud) Unpunched 1600S300-118-P
Limiting Height: 133' 1" Spacing L/120 L/240 L/360 12" 133' 1" 105' 8" 92' 3" 16" 120' 11" 96' 0" 83' 10" 24" 105' 8" 83' 10" 73' 3"
S350 (3-1/2" Flange Structural Stud) Unpunched 1600S350-68-P
Limiting Height: 114' 8" Spacing L/120 L/240 L/360 12" 114' 8" 91' 0" 79' 6" 16" 104' 2" 82' 8" 72' 3" 24" 91' 0" 72' 3" 63' 1"
S350 (3-1/2" Flange Structural Stud) Unpunched 1600S350-97-P
Limiting Height: 129' 11" Spacing L/120 L/240 L/360 12" 129' 11" 103' 2" 90' 1" 16" 118' 1" 93' 9" 81' 10" 24" 103' 2" 81' 10" 71' 6"
S350 (3-1/2" Flange Structural Stud) Unpunched 1600S350-118-P
Limiting Height: 139' 1" Spacing L/120 L/240 L/360 12" 139' 1" 110' 4" 96' 5" 16" 126' 4" 100' 3" 87' 7" 24" 110' 4" 87' 7" 76' 6"
Notes Calculated properties are based on AISI S100-16 (2020) w/S2-20 - North American Specification for CFS Structural Members.
Some profiles and sizes may not be available in all markets. Contact your ClarkDietrich Sales Representative for availability on custom systems.
Loads have NOT been reduced for strength or deflection checks. Full lateral load is applied.
Limiting heights are based on continuous support of each flange over the full length of the stud.
Limiting heights are based on steel properties only (non-composite).
Web crippling checks are based on end-one flange loading condition using 1-inch end bearing.
Where limiting heights are followed by "e", web stiffeners are required.
* Heights are limited to 60' due to shipping, installation and design considerations. If higher spans are required, please contact Engineering Services to evaluate your design.
